Description

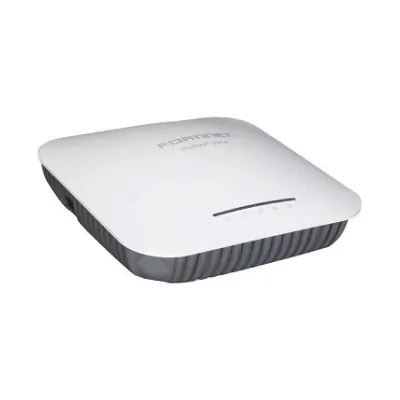

Fortinet FortiAP 231F-B Overview Fortinet FortiAP 231F-B is an enterprise-class Wi-Fi 6 indoor access point designed for fast, secure and reliable wireless connectivity. It works with FortiGate security appliances or FortiAP Cloud for easy management. With Fortinet Security Fabric, you can control both wired and wireless network from one single dashboard. This AP is ideal for campus, branch offices, SMBs, remote workers and more. Key Features Unified Management – Simple console for managing security and policies. Advanced Protection – Built-in firewall, IPS, web filtering to secure your Wi-Fi. Wi-Fi Security – Keeps your network safe from wireless threats and helps with PCI DSS compliance. Wi-Fi 6 Performance – Tri-radio design with OFDMA, dual 1Gbps ports, and 24/7 scanning for strong coverage. Flexible Use Cases – Perfect for campus, branch offices, micro-branches, SMB, and remote work setup. Specifications of FortiAP 231F-B Category Details Hardware Type Indoor AP Radios 3 + 1 BLE Antennas 3 dual band internal Wi-Fi + 1 BLE/ZigBee Antenna Gain 4.5 dBi (2.4 GHz), 5.5 dBi (5 GHz), 4.0 dBi (BLE) Frequency Bands 2.4 GHz / 5 GHz Max Data Rate 574 Mbps (2.4 GHz), 1201 Mbps (5 GHz) Interfaces 2x Gigabit RJ45, 1x USB 2.0, 1x RS-232 Serial PoE Support 802.3at PoE (default), 802.3af PoE (no USB) Simultaneous SSIDs Up to 16 Authentication WPA, WPA2, WPA3, 802.1x, Captive Portal Client Capacity Up to 512 per radio Mounting Options Ceiling, T-Rail, Wall Dimensions 153.2 × 153.2 × 53 mm Weight 0.54 kg Power Consumption Max 17W Operating Temp. 0°C – 50°C Warranty Limited Lifetime Why Choose FortiAP 231F? This AP is best for organizations that need fast Wi-Fi 6 performance with enterprise security. It’s easy to deploy, secure, and can handle high-capacity environments. Whether you are running a campus, small office, or remote setup, FortiAP 231F makes network management simple and reliable.
