Description

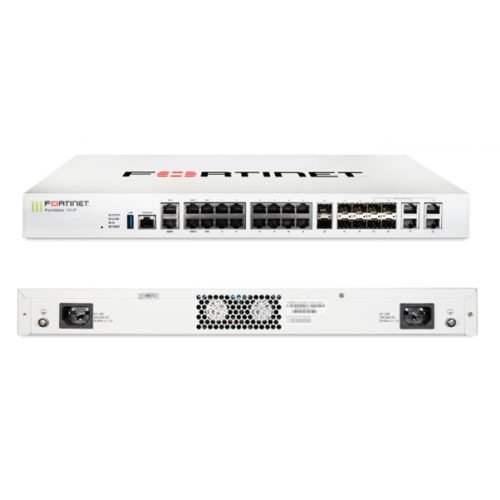

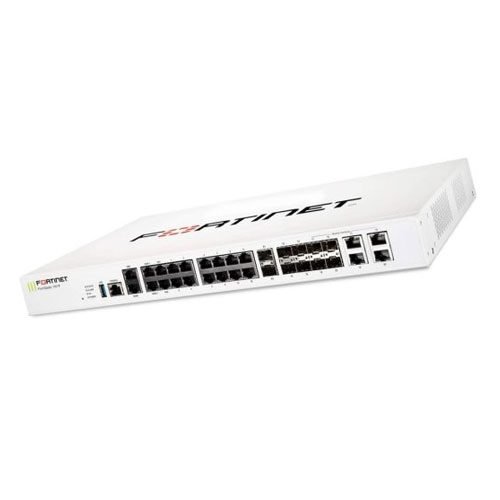

Fortinet FG-101F-BDL-950-12 Firewall: Fortinet FG-101F-BDL-950-12 Firewall are available in Pakistan through IT Networks. The FG-101F-BDL-950-12 is a high-performance security appliance tailored for mid-sized to large enterprises. Specifications  Interfaces and Modules Hardware Accelerated GE RJ45 Ports 12 Hardware Accelerated GE RJ45 Management / HA / DMZ Ports 1 / 2 / 1 Hardware Accelerated GE SFP Slots 4 Hardware Accelerated 10 GE SFP+ FortiLink Slots (default) 2 GE RJ45 WAN Ports 2 GE RJ45or SFP Shared Ports * 4 USB Port 1 Console Port 1 Onboard Storage 1x 480 GB SSD Included Transceivers 0 System Performance — Enterprise Traffic Mix IPS Throughput 2  2.6 Gbps NGFW Throughput 2, 4  1.6 Gbps Threat Protection Throughput 2, 5  1 Gbps System Performance and Capacity IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 20 / 18 / 10 Gbps Firewall Latency (64 byte, UDP) 4.97 μs Firewall Throughput (Packet per Second) 15 Mpps Concurrent Sessions (TCP) 1.5 Million New Sessions / Second (TCP) 56,000 Firewall Policies 10,000 IPsec VPN Throughput (512 byte) 1  11.5 Gbps Gateway-to-Gateway IPsec VPN Tunnels 2,500 Client-to-Gateway IPsec VPN Tunnels 16,000 SSL-VPN Throughput 1 Gbps Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 500 SSL Inspection Throughput (IPS, avg. HTTPS) 3 1 Gbps SSL Inspection CPS (IPS, avg. HTTPS) 3 1,800 SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 135,000 Application Control Throughput (HTTP 64K) 2 2.2 Gbps CAPWAP Throughput (HTTP 64K) 15 Gbps Virtual Domains (Default / Maximum) 10 / 10 Maximum Number of Forti Switches Supported 32 Maximum Number of FortiAPs (Total / Tunnel) 128 / 64 Maximum Number of FortiTokens 5,000 High Availability Configurations Active / Active, Active / Passive, Clustering Dimensions and Power Height x Width x Length (inches) 1.73 x 17 x 10 Height x Width x Length (mm) 44 x 432 x 254 Weight 7.56 lbs (3.43 kg) Form Factor (supports EIA/non-EIA standards) Rack Mount, 1 RU AC Power Supply 100–240V AC, 50/60 Hz Power Consumption (Average / Maximum) 35.3 W / 39.1 W Current (Maximum) 100V / 1A, 240V / 0.5A Heat Dissipation 121.13 BTU/h Redundant Power Supplies Yes Redundant Power Supplies Yes Operating Temperature 32–104°F (0–40°C) Storage Temperature -31–158°F (-35–70°C) Humidity 10–90% non-condensing Noise Level 40.4 dBA Forced Airflow Side to Back Operating Altitude Up to 7,400 ft (2,250 m) Compliance FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 Note: All performance values are “up to” and vary depending on system configuration. 1. IPsec VPN performance test uses AES256-SHA256. 2. IPS (Enterprise Mix), Application Control, NGFW, and Threat Protection are measured with Logging enabled. 3. SSL Inspection performance values use an average of HTTPS sessions of different cipher suites. 4. NGFW performance is measured with Firewall, IPS, and Application Control enabled. 5. Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled. Get More Information Do you have any question about the Fortinet Firewall? For any query and details feel free to Contact us now via Live Chat Call or E-mail us at info@itn.com.pk.
